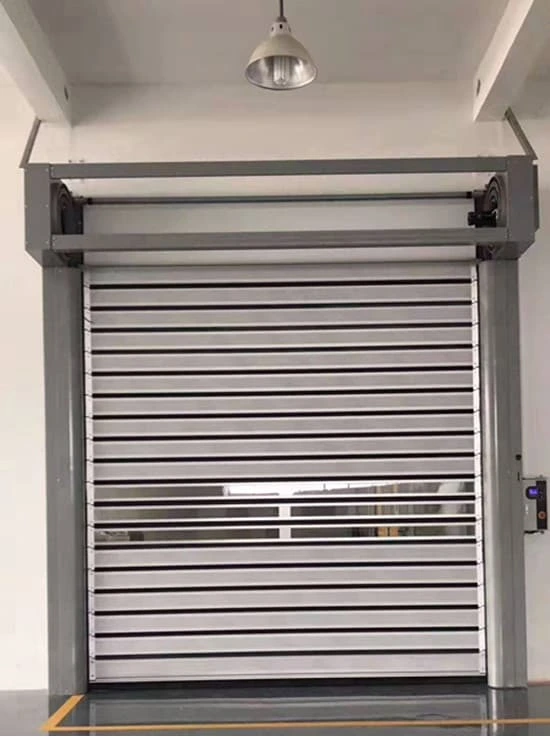

Aluminum High Speed Spiral Door with Good Thermal Insulation

The biggest feature of this series of doors is good thermal insulation and fast running speed, and all of them are equipped with safety gratings as standard. In the process of opening and closing the door, there is no contact and friction between the door panels. It is a quick door with heat preservation, energy saving, sealing, high efficiency, wind resistance and environmental protection. The maximum opening speed can reach 1.5 meters per second. The door panel is made of 0.8mm thick double-layer stretched aluminum plate, and the middle insulation material is filled with polyurethane foam. The cross section is designed as a broken bridge thermal insulation structure, which has the characteristics of good thermal insulation, light weight, high strength and impact resistance, and the wind resistance level is ≤12. This door type is suitable for the fast passage of indoor and outdoor logistics and production The adoption of this door type can save energy loss caused by air circulation for enterprises, which is about 80% less than that of ordinary industrial sliding doors and rolling shutter doors.

Inquiry

Write a Review

product information

The rapid opening and closing of this door greatly improves the production efficiency of enterprises. This door is the only passage for enterprise logistics and production, and its use and selection are directly related to the efficiency of enterprise production and logistics. energy-saving and accurate servo system to ensure the reliable operation of the door body, in order to ensure trouble-free operation for more than one million times a year.

product description

Experience smooth and fast functionality with our Aluminum high speed Spiral door. Its innovative design and durable construction ensure long-lasting performance and security for your space.

Wind resistance: 40 M/S (DIN EN 12424 wind resistance grade 11)

Thermal insulation performance: thermal insulation coefficient: K-VALUE 0.4W/M2K.

Transparent window: optional

Sealing performance: guide rail sealing, door body connection sealing.

Security system

Infrared safety protection electric eye:

There are opposite electric eyes on both sides of the door frame, and there are objects under the quick door to keep the door open; When something passes under the door when it descends, the door will open to the maximum open position, and then it will descend with a delay when there is no obstacle below.

Bottom safety protection edge:

When the door body is descending, because the object is in the blind zone of infrared safety protection, when the door body presses against the obstacle below, the door body quickly rebounds to the maximum opening, effectively protecting the object below or pedestrians from accidents.

Infrared light curtain:

This configuration is the most effective safety protection method unique to the industrial door of Pefo. A group of grating walls are installed in the vertical direction, which is usually composed of 18 groups of optical heads. Using 485 communication protocol, the position of the door curtain is calculated according to the real-time height of the door curtain body, and it is a measure to protect pedestrians and objects passing by.

product details





Product parameters

Panel Color	White Aluminium RAL9006,Other Colors Can Be Customized
Max. size	W:12000mm,H:8000mm
Open speed	0.6m/s~1.5m/s (adjusatble)
Close speed	0.6m/s (adjustable)
Standard thickness of door panel	44mm
Thermal insulation of door panel	K≤1.5W/(m²·K)
Finishing	Anodizing + organic coloring
Wind load resistance	32m/s (≤12F)
Working voltage/frequency	220V,380V/14A/50Hz
Material	Aluminum Alloy
Service life	> 500,000 times
MOQ	1 Set
OEM	Accepted
Packing	Wooden Box
Delivery Time	15-25 Days

Items	Unit	Description of Configuration
Special motor for High speed door	SET	Power 1.5-2.2kw BAOJIU A4
Control system	SET	Two-phase 220V power 0.75-1.5KW, control box with main power control switch, emergency stop button, manual automatic transfer button, manual control up and down button.
Aluminum alloy door panel	SET	Aluminum alloy door panel wall thickness of 0.8mm, thickness of 40mm/60mm/80mm/100mm, door curtain for separate assembly structure: bridge insulation aluminum alloy door plate, multi-level sealing rubber strip, muffler bearing chain, polyurethane guide wheel and other parts; When the door body runs, it slides in the aluminum alloy track through the guide wheel made of polyurethane vinegar.
Guide rail	SET	German laser wire cutting technology is adopted to improve the machining accuracy of fast door accessories. CNC bending molding, plate selection of high-quality galvanized materials, the thickness of Column is 2.5mm,the thickness of aluminum alloy track is 5.0mm
stopper	SET	Servo built-in absolute value encoder control, accurate positioning.
Perspective window	SET	The design of high quality polycarbonate board and double layer structure not only ensures the insulation effect inside and outside the door body, but also maintains good transparent lighting effect. The inside and outside are clear and visible, and the appearance highlights the grade. The thickness is 2.0mm
Safety protection device	SET	When there is an obstacle below the express door, the door body should remain open; When the door body descends and objects pass through, the door will open to the open position, and then delay the descent when there is no obstacle below.
Equilibrium system	Strip	Both sides of the door post internal balance spring, and the door plate weight maintain a certain balance, while reducing the load of the motor running, running smoothly and freely.
Door body traction	Strip	High quality wear-resistant and high strength roller chain structure is adopted. The door body is driven into the turbine mechanism which can change speed rapidly through the synchronous chain.
Opening mode	SET	Radar induction device: In the induction area, the door will open automatically when the vehicle arrives.
Opening mode	SET	The ground settle opening device: in the induction area, the car to the door automatically open.
Opening speed	m/s	Opening and closing speed of 0.6m-1.5m per second, high frequency closing (800~2000 times a day) button, indicator using high quality brand.
Column section		305mm*250mm(Adjust according to door thickness of the panel)
