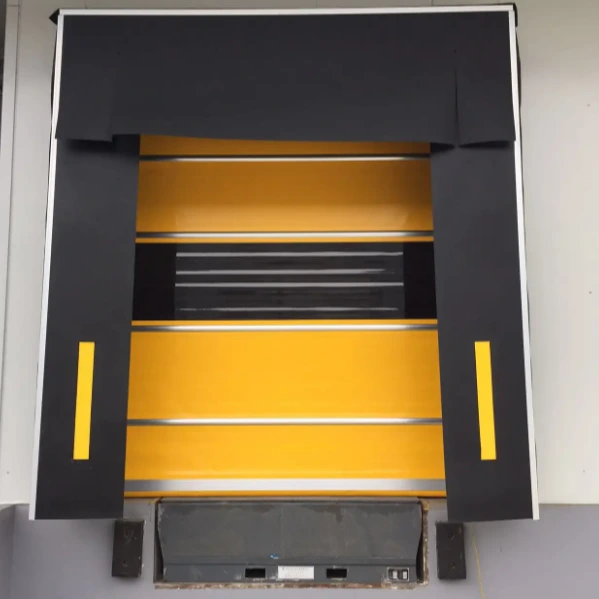

Double-Layer High-Elastic Polyester Fiber Mechanical Dock Shelter
The mechanical dock shelter uses a double-layer high-elastic polyester fiber door curtain with a PVC layer sprayed on the surface. It is superior to sponge door seals in adapting to different car sizes and sealing performance. Not only that, because the mechanical dock shelter has a simpler structure, it is more convenient and quick to install, and the load-bearing requirements for the wall are also lower.
product information
Protect your loading dock from harsh weather and improve energy efficiency with our durable mechanical dock shelter. Keep your goods and workers safe and dry during loading and unloading with our shelter, which provides a tight seal around the trailer to prevent rain, snow, and wind from entering the dock area. This ensures that your products are protected, reducing the risk of damage and spoilage. The energy-efficient design helps to maintain a comfortable working environment while also lowering heating and cooling costs. Constructed with high-quality materials, our mechanical dock shelter is built to withstand everyday use, delivering reliable protection for years to come and saving you time and money on maintenance and replacements. Invest in a mechanical dock shelter to experience the benefits of enhanced safety, efficiency, and cost savings. Contact us today to learn more.
product description
The mechanical dock shelter protects the loading and unloading area, maintaining a controlled environment for the handling process. Its durable construction reduces maintenance costs and contributes to energy efficiency. It is ideal for high-traffic loading areas and is a valuable investment for improving safety, efficiency, and environmental control.
Security system
product details
Product parameters
|
Specification |
|||
|
Width mm |
3000， 3200， 3400， |
||
|
Height mm |
3000， 3200， 3400， 4400 |
||
|
Thickness |
3mm |
||
|
Standard Configuration |
single layer |
||
|
Optional configuration |
double layer |
||
|
Profile color |
Aluminum intrinsic color（RAL9006） |
||
|
Parameters |
|||
|
Front curtain |
Side PVC curtain |
||
|
Longitudinal Tensile Force |
>550N |
Tensile resistance |
250N |
|
Transverse Tensile Force |
>900N |
Thickness |
0.5mm |
|
ultimate tensile strength |
250N/mm² |
Weight |
0.7kg/mm |
|
Metal friction coefficient |
0.3 |
Working temperature |
-35℃—+70℃ |
|
PVC Friction Coefficient |
0.4 |
frame |
Aluminum alloy |
|
Thickness |
3mm |
Back-end Profile Size |
50*44mm |
|
Weight |
3.6kg/mm |
Front end profile size |
45*44mm |
|
Working temperature |
-35℃—+70℃ |
Frame size |
50*25*2.5mm |
