Application location: high speed freezer doors of industrial factories used in food, medicine, electronics, automotive, logistics, machinery, and other industries.
product information
The insulation and energy-saving use of fast doors in fast logistics areas can help save energy, reduce air convection, and reduce noise. The structural design of the soft curtain anti-collision quick opening door is simple, with fewer movable components (without springs, balance weights, coils, and pulleys), which is conducive to stable operation, reducing the frequency of repairing and replacing vulnerable parts, effectively improving the durability and service life of the equipment. In the event of accidental impact, the door curtain can derail and automatically reset during the lifting process, without the need for manual repair and resetting throughout the entire process. The structural design feature of this product is that it can operate without faults more than 150000 times per year.
product description

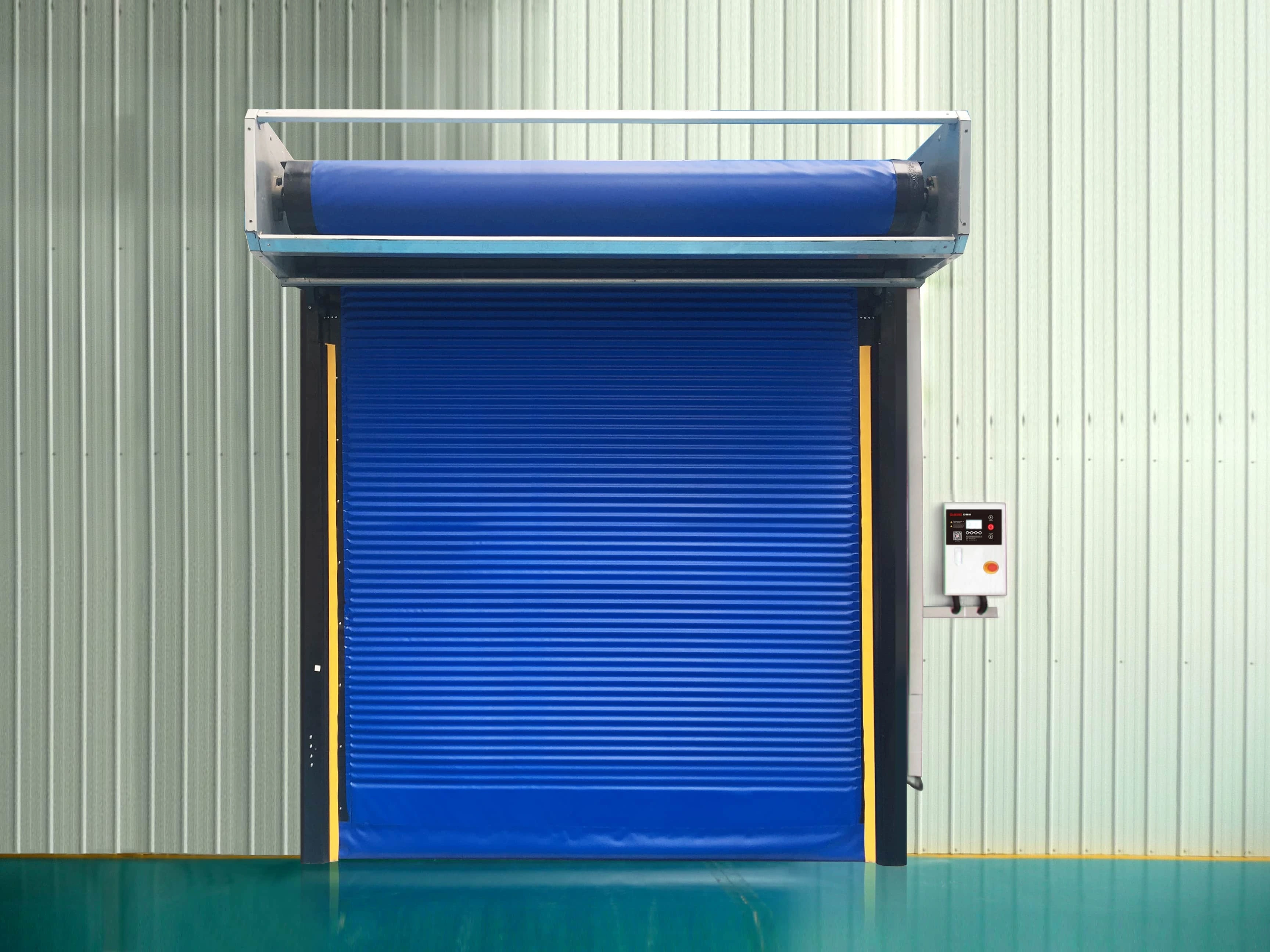

Our high speed freezer doors are designed with advanced technology to provide quick access while maintaining temperature control. With durable construction and efficient operation, these doors are the ideal choice for any industrial freezer application.
Security system
product details
Product parameters
Using location |
External&Internal door |
Door curtain material |
1.2 mm thick PVC with transparent PVC stripe |
Door frame |
Standard galvanized steel(option: 304 stainless steel) |
Door control system |
Servo system |
English Man-Machine Interface, |
|
Self Trouble-Shooting Recognizing system |
|
Door designing |
Unique for the large size |
Motor location |
both sides are ok |
Safety system |
standard built-in photo cell |
Safe Equipment |
Beep,Anti-wind Bar,Traffic Light,Emergency Handle,Shoulder Protection |
Door max size |
10m(W)x10m(H) |
Wind load max |
28m/s |
Opening speed |
0.6-1.2m/s |
Closing speed |
0.6m/s |
Color |
Yellow/blue/white |
Option |
induction loop, radar, pull-cord, push button, remote control |
