Product details of the high speed roll up door manufacturers


Quick Overview

Bosu Door high speed roll up door manufacturers is designed and manufactured using the best material. The product is methodically examined to ensure its quality and durability. Bosu's high speed roll up door manufacturers is available in a wide range of applications. high speed roll up door manufacturers enjoys high reputation among overseas customers and has created a good public image over the years.


Product Information

Compared with other same kind of products, high speed roll up door manufacturers produced by Bosu has the following advantages and features.

product information

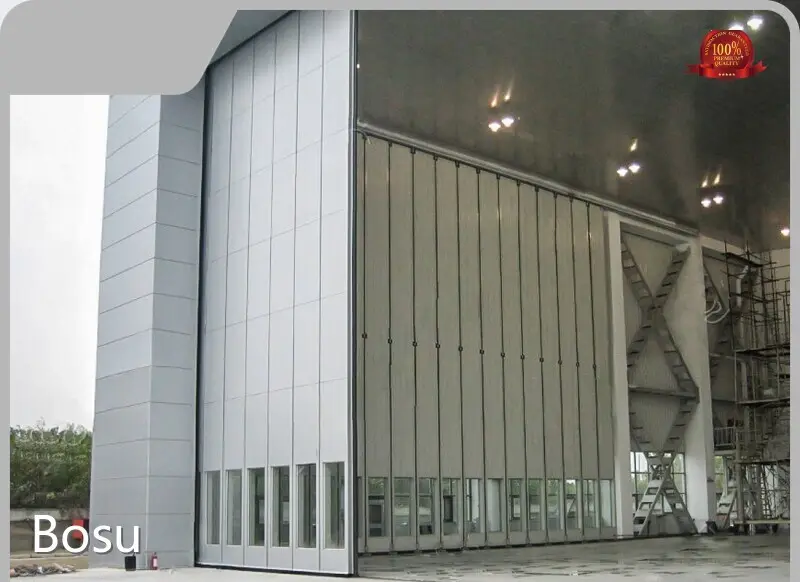

Maximize space and convenience with our sliding hangar door. Easy to operate and durable, it provides efficient access for aircraft and large equipment. Our sliding hangar doors are designed to maximize usable space by sliding horizontally, allowing for more room for maneuvering and storage within the hangar. The smooth and easy operation of the doors reduces the time and effort required for accessing and stowing aircraft and equipment, increasing productivity and efficiency. The durable construction ensures long-lasting performance, even in demanding industrial environments. With a variety of sizes and customization options available, our sliding hangar doors can be tailored to fit the specific needs of your facility. Upgrade your hangar with our sliding doors and experience improved accessibility and functionality.

product description

The operation monitoring of the hangar door automatic control system adopts a centralized control cabinet, and all the states of the door body are displayed on the touch screen in the form of strip flashing.
The hangar door automatic control system adopts a modular design, which is easy to interchange and expand, and guarantees the flexibility of the system to the maximum extent.
The hangar door safety control system is equipped with all-round and multi-angle safety protection, which mainly includes the following safety concepts.
1. Long-distance safety photoelectric system
2. Short-distance safety monitoring system
3. All-round high-sensitivity safety edge unit
4. Inching operation safety mode
5. Operation light and alarm light
6. Small door interlock protection function
Sizes may be available on request
Higher wind loads on request
Operating environment with high humidity and low temperature on request

Control system

图片65 (2)
01
Hangar door touch screen monitoring unit
图片62 (2)
02
hangar door automatic control unit
03
hangar door power supply and signal transmission unit
04
hangar door drive and limit unit
05
hangar door control system schematic diagram and control program
06
Safety protection system

product details

图片65 (2)
图片65 (2)

Product parameters

Items

Unit

Description of Configuration

Special motor for High speed door

SET

Power 1.5-2.2kw   BAOJIU A4

Control system

SET

Two-phase 220V power 0.75-1.5KW, control box with main power control switch, emergency stop button, manual automatic transfer button, manual control up and down button.

Aluminum alloy door panel

SET

Aluminum alloy door panel wall thickness of 0.8mm, thickness of 40mm/60mm/80mm/100mm, door curtain for separate assembly structure: bridge insulation aluminum alloy door plate, multi-level sealing rubber strip, muffler bearing chain, polyurethane guide wheel and other parts; When the door body runs, it slides in the aluminum alloy track through the guide wheel made of polyurethane vinegar.

Guide rail

SET

German laser wire cutting technology is adopted to improve the machining accuracy of fast door accessories. CNC bending molding, plate selection of high-quality galvanized materials,  the thickness of Column is 2.5mm,the thickness of aluminum alloy track is 5.0mm

stopper

SET

Servo built-in absolute value encoder control, accurate positioning.

Perspective window

SET

The design of high quality polycarbonate board and double layer structure not only ensures the insulation effect inside and outside the door body, but also maintains good transparent lighting effect. The inside and outside are clear and visible, and the appearance highlights the grade. The thickness is 2.0mm

Safety protection device

SET

When there is an obstacle below the express door, the door body should remain open; When the door body descends and objects pass through, the door will open to the open position, and then delay the descent when there is no obstacle below.

Equilibrium system

Strip

Both sides of the door post internal balance spring, and the door plate weight maintain a certain balance, while reducing the load of the motor running, running smoothly and freely.

Door body traction

Strip

High quality wear-resistant and high strength roller chain structure is adopted. The door body is driven into the turbine mechanism which can change speed rapidly through the synchronous chain.

Opening mode

SET

Radar induction device: In the induction area, the door will open automatically when the vehicle arrives.

SET

The ground settle opening device: in the induction area, the car to the door automatically open.

Opening speed

m/s

Opening and closing speed of 0.6m-1.5m per second, high frequency closing (800~2000 times a day) button, indicator using high quality brand.

Column section



305mm*250mm(Adjust according to door thickness of the panel)
