Product details of the roll up door manufacturers
Quick Overview
The offered roll up door manufacturers is manufactured using premium quality materials and sophisticated technology. Its quality is highly valued in our factory. roll up door manufacturers of Bosu has very extensive application in different scenarios. Many customers are satisfied with the quality of roll up door manufacturers.
Product Introduction
The roll up door manufacturers produced by our company have superior quality, and the specific details of products are presented in the following section.
product information
The rapid opening and closing of this door greatly improves the production efficiency of enterprises. This door is the only passage for enterprise logistics and production, and its use and selection are directly related to the efficiency of enterprise production and logistics. energy-saving and accurate servo system to ensure the reliable operation of the door body, in order to ensure trouble-free operation for more than one million times a year.
product description

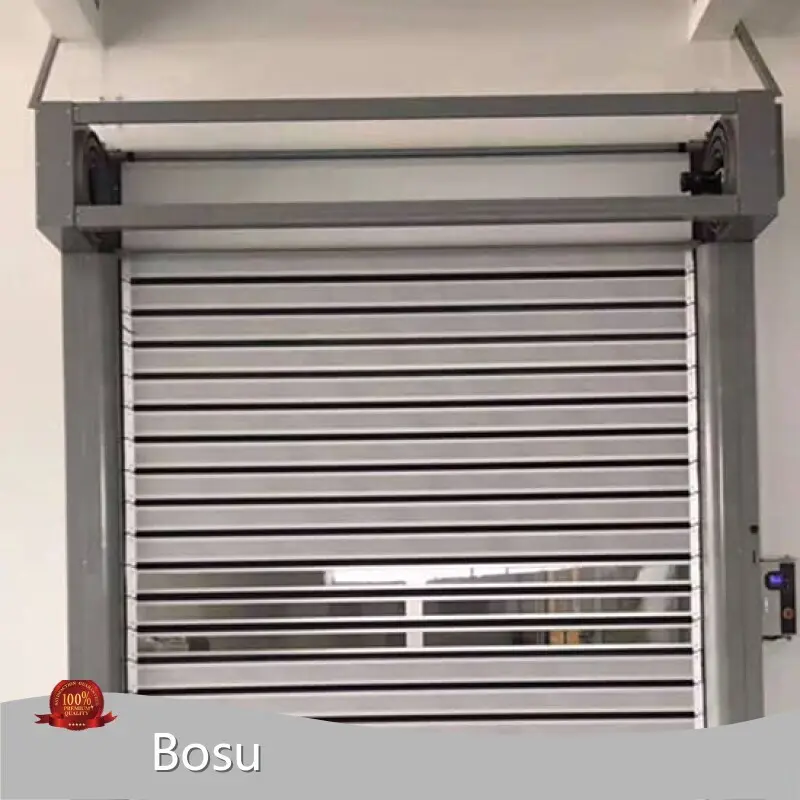

Experience smooth and fast functionality with our Aluminum high speed Spiral door. Its innovative design and durable construction ensure long-lasting performance and security for your space.
Security system
product details
Product parameters
|
Panel Color |
White Aluminium RAL9006,Other Colors Can Be Customized |
|
Max. size |
W:12000mm,H:8000mm |
|
Open speed |
0.6m/s~1.5m/s (adjusatble) |
|
Close speed |
0.6m/s (adjustable) |
|
Standard thickness of door panel |
44mm |
|
Thermal insulation of door panel |
K≤1.5W/(m²·K) |
|
Finishing |
Anodizing + organic coloring |
|
Wind load resistance |
32m/s (≤12F) |
|
Working voltage/frequency |
220V,380V/14A/50Hz |
|
Material |
Aluminum Alloy |
|
Service life |
> 500,000 times |
|
MOQ |
1 Set |
|
OEM |
Accepted |
|
Packing |
Wooden Box |
|
Delivery Time |
15-25 Days |
|
Items |
Unit |
Description of Configuration |
|
Special motor for High speed door |
SET |
Power 1.5-2.2kw BAOJIU A4 |
|
Control system |
SET |
Two-phase 220V power 0.75-1.5KW, control box with main power control switch, emergency stop button, manual automatic transfer button, manual control up and down button. |
|
Aluminum alloy door panel |
SET |
Aluminum alloy door panel wall thickness of 0.8mm, thickness of 40mm/60mm/80mm/100mm, door curtain for separate assembly structure: bridge insulation aluminum alloy door plate, multi-level sealing rubber strip, muffler bearing chain, polyurethane guide wheel and other parts; When the door body runs, it slides in the aluminum alloy track through the guide wheel made of polyurethane vinegar. |
|
Guide rail |
SET |
German laser wire cutting technology is adopted to improve the machining accuracy of fast door accessories. CNC bending molding, plate selection of high-quality galvanized materials, the thickness of Column is 2.5mm,the thickness of aluminum alloy track is 5.0mm |
|
stopper |
SET |
Servo built-in absolute value encoder control, accurate positioning. |
|
Perspective window |
SET |
The design of high quality polycarbonate board and double layer structure not only ensures the insulation effect inside and outside the door body, but also maintains good transparent lighting effect. The inside and outside are clear and visible, and the appearance highlights the grade. The thickness is 2.0mm |
|
Safety protection device |
SET |
When there is an obstacle below the express door, the door body should remain open; When the door body descends and objects pass through, the door will open to the open position, and then delay the descent when there is no obstacle below. |
|
Equilibrium system |
Strip |
Both sides of the door post internal balance spring, and the door plate weight maintain a certain balance, while reducing the load of the motor running, running smoothly and freely. |
|
Door body traction |
Strip |
High quality wear-resistant and high strength roller chain structure is adopted. The door body is driven into the turbine mechanism which can change speed rapidly through the synchronous chain. |
|
Opening mode |
SET |
Radar induction device: In the induction area, the door will open automatically when the vehicle arrives. |
|
SET |
The ground settle opening device: in the induction area, the car to the door automatically open. |
|
|
Opening speed |
m/s |
Opening and closing speed of 0.6m-1.5m per second, high frequency closing (800~2000 times a day) button, indicator using high quality brand. |
|
Column section |
|
305mm*250mm(Adjust according to door thickness of the panel) |
