Hangar Door Manufacturers - - Bosu Door

Panel Color

White Aluminium RAL9006,Other Colors Can Be Customized

Max. size

W:12000mm,H:8000mm

Open speed

0.6m/s~1.5m/s (adjusatble)

Close speed

0.6m/s (adjustable)

Standard thickness of door panel

44mm

Thermal insulation of door panel

K≤1.5W/(m²·K)

Finishing

Anodizing + organic coloring

Wind load resistance

32m/s (≤12F)

Working voltage/frequency

220V,380V/14A/50Hz

Material

Aluminum Alloy

Service life

> 500,000 times

MOQ

1 Set

OEM

Accepted

Packing

Wooden Box

Delivery Time

15-25 Days

Items

Unit

Description of Configuration

Special motor for High speed door

SET

Power 1.5-2.2kw   BAOJIU A4

Control system

SET

Two-phase 220V power 0.75-1.5KW, control box with main power control switch, emergency stop button, manual automatic transfer button, manual control up and down button.

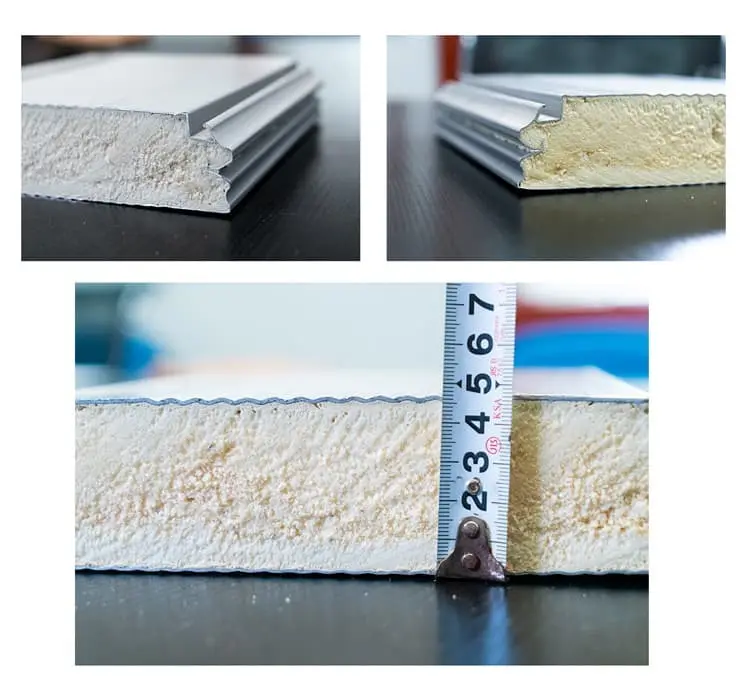

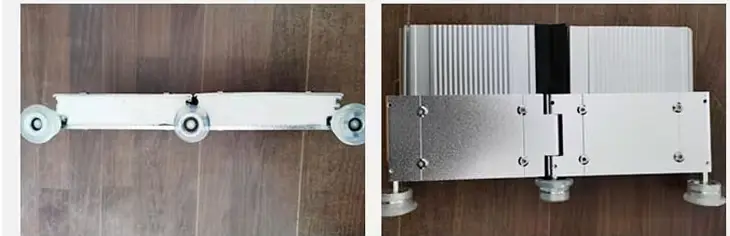

Aluminum alloy door panel

SET

Aluminum alloy door panel wall thickness of 0.8mm, thickness of 40mm/60mm/80mm/100mm, door curtain for separate assembly structure: bridge insulation aluminum alloy door plate, multi-level sealing rubber strip, muffler bearing chain, polyurethane guide wheel and other parts; When the door body runs, it slides in the aluminum alloy track through the guide wheel made of polyurethane vinegar.

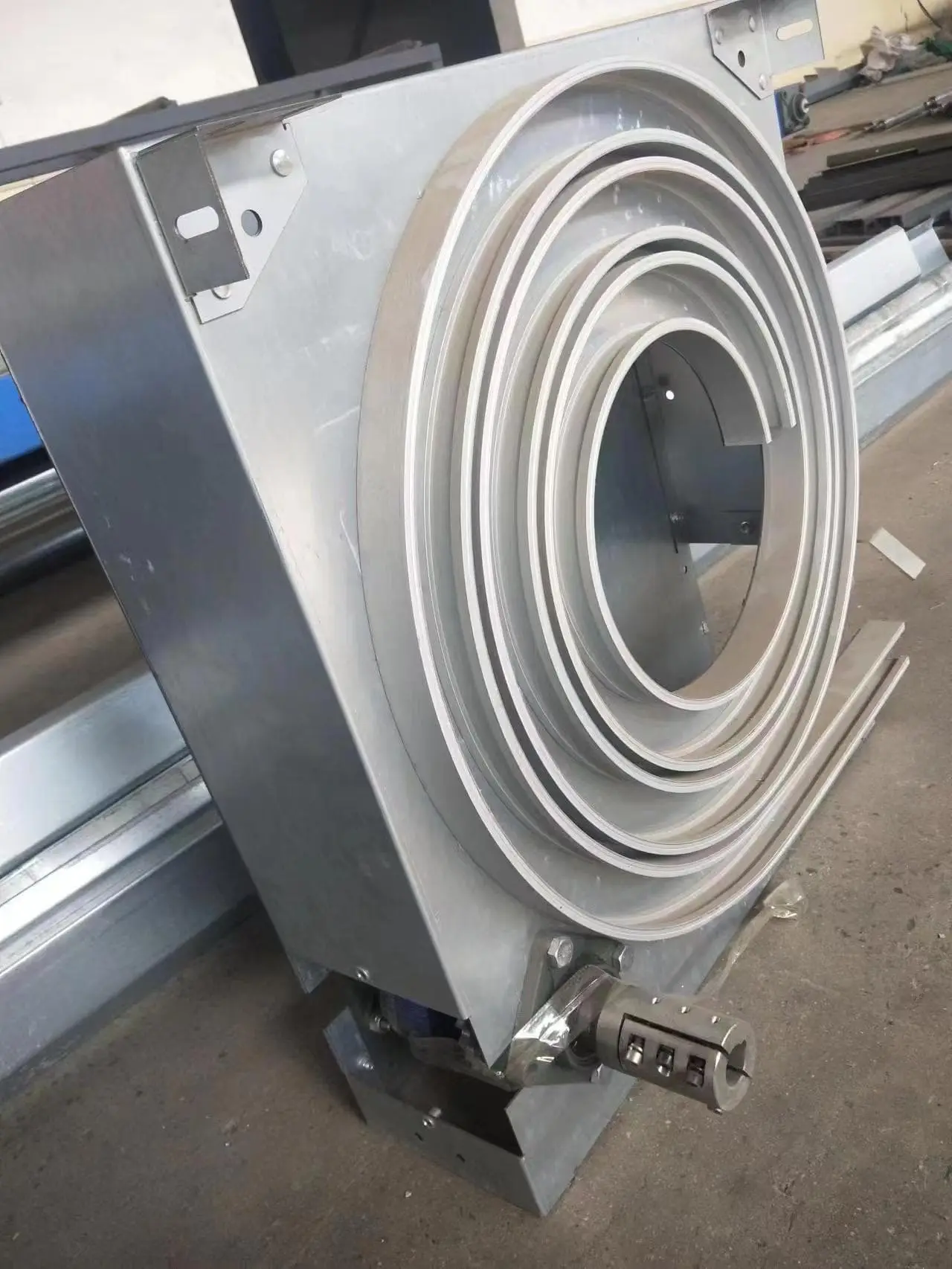

Guide rail

SET

German laser wire cutting technology is adopted to improve the machining accuracy of fast door accessories. CNC bending molding, plate selection of high-quality galvanized materials,  the thickness of Column is 2.5mm,the thickness of aluminum alloy track is 5.0mm

stopper

SET

Servo built-in absolute value encoder control, accurate positioning.

Perspective window

SET

The design of high quality polycarbonate board and double layer structure not only ensures the insulation effect inside and outside the door body, but also maintains good transparent lighting effect. The inside and outside are clear and visible, and the appearance highlights the grade. The thickness is 2.0mm

Safety protection device

SET

When there is an obstacle below the express door, the door body should remain open; When the door body descends and objects pass through, the door will open to the open position, and then delay the descent when there is no obstacle below.

Equilibrium system

Strip

Both sides of the door post internal balance spring, and the door plate weight maintain a certain balance, while reducing the load of the motor running, running smoothly and freely.

Door body traction

Strip

High quality wear-resistant and high strength roller chain structure is adopted. The door body is driven into the turbine mechanism which can change speed rapidly through the synchronous chain.

Opening mode

SET

Radar induction device: In the induction area, the door will open automatically when the vehicle arrives.

SET

The ground settle opening device: in the induction area, the car to the door automatically open.

Opening speed

m/s

Opening and closing speed of 0.6m-1.5m per second, high frequency closing (800~2000 times a day) button, indicator using high quality brand.

Column section

305mm*250mm(Adjust according to door thickness of the panel)
