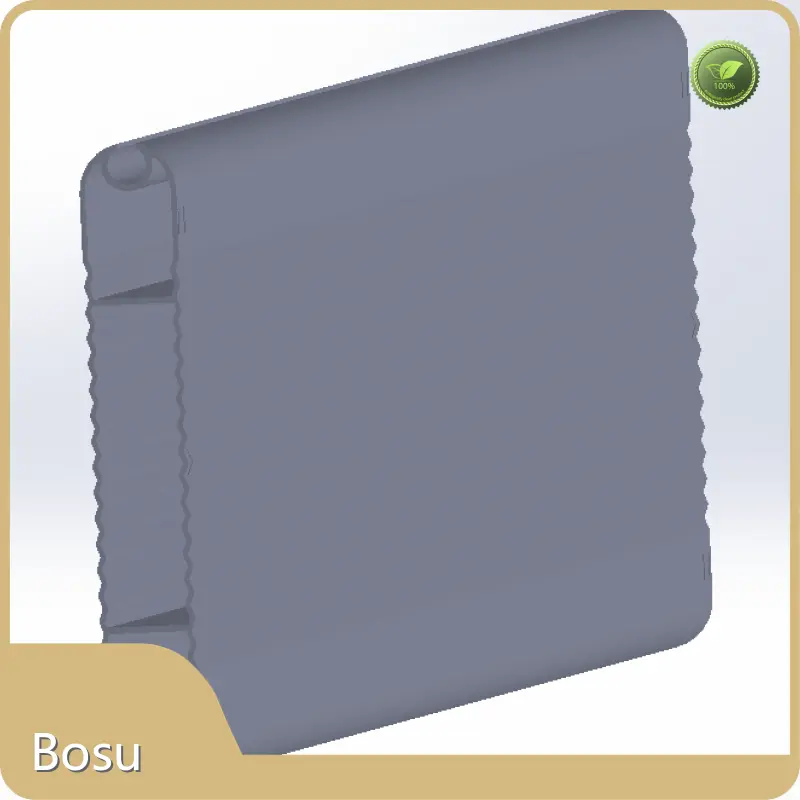

Aluminum roller shutter panels are designed to withstand harsh weather conditions and provide an added layer of security for your home or business. The durable construction ensures longevity and reliable protection against intruders and extreme weather events. Additionally, the sleek and modern design adds a touch of style to any property, enhancing its overall aesthetic appeal. Furthermore, the smooth operation of these panels makes it effortless to open and close, providing ease of use for homeowners and business owners alike. Whether you are looking to protect your storefront, garage, or windows, aluminum roller shutter panels are a versatile and practical solution for enhancing security while maintaining a sense of style. Consider investing in these panels to safeguard your property without compromising on aesthetics.
Our aluminum roller shutter door panels are also customizable to fit any space, with a range of colors and finishes available. Additionally, the panels are designed for easy operation, making them convenient for everyday use. Whether for commercial or residential applications, our aluminum roller shutter door panels are a practical and stylish choice for enhancing security and style.
Aluminum construction material.
Provides thermal control.
Strong protection system.
|
Items
|
Unit
|
Description of Configuration
|
|
Special motor for High speed door
|
SET
|
Power 1.5-2.2kw BAOJIU A4
|
|
Control system
|
SET
|
Two-phase 220V power 0.75-1.5KW, control box with main power control switch, emergency stop button, manual automatic transfer button, manual control up and down button.
|
|
Aluminum alloy door panel
|
SET
|
Aluminum alloy door panel wall thickness of 0.8mm, thickness of 40mm/60mm/80mm/100mm, door curtain for separate assembly structure: bridge insulation aluminum alloy door plate, multi-level sealing rubber strip, muffler bearing chain, polyurethane guide wheel and other parts; When the door body runs, it slides in the aluminum alloy track through the guide wheel made of polyurethane vinegar.
|
|
Guide rail
|
SET
|
German laser wire cutting technology is adopted to improve the machining accuracy of fast door accessories. CNC bending molding, plate selection of high-quality galvanized materials, the thickness of Column is 2.5mm,the thickness of aluminum alloy track is 5.0mm
|
|
stopper
|
SET
|
Servo built-in absolute value encoder control, accurate positioning.
|
|
Perspective window
|
SET
|
The design of high quality polycarbonate board and double layer structure not only ensures the insulation effect inside and outside the door body, but also maintains good transparent lighting effect. The inside and outside are clear and visible, and the appearance highlights the grade. The thickness is 2.0mm
|
|
Safety protection device
|
SET
|
When there is an obstacle below the express door, the door body should remain open; When the door body descends and objects pass through, the door will open to the open position, and then delay the descent when there is no obstacle below.
|
|
Equilibrium system
|
Strip
|
Both sides of the door post internal balance spring, and the door plate weight maintain a certain balance, while reducing the load of the motor running, running smoothly and freely.
|
|
Door body traction
|
Strip
|
High quality wear-resistant and high strength roller chain structure is adopted. The door body is driven into the turbine mechanism which can change speed rapidly through the synchronous chain.
|
|
Opening mode
|
SET
|
Radar induction device: In the induction area, the door will open automatically when the vehicle arrives.
|
|
SET
|
The ground settle opening device: in the induction area, the car to the door automatically open.
|
|
Opening speed
|
m/s
|
Opening and closing speed of 0.6m-1.5m per second, high frequency closing (800~2000 times a day) button, indicator using high quality brand.
|
|
Column section
|
|
305mm*250mm(Adjust according to door thickness of the panel)
|
Company Advantages
· roll up garage door manufacturers's performance is popularly accepted in the country and abroad.
· The implementation of the quality management system ensures that products conform to international standards.
· The product is really treasured by our customers for its consistent position in the market.
Company Features
· Bosu Door has been working on providing the most competitive roll up garage door manufacturers and offering the one-stop services.
· Bosu New Material Technology (Shanghai) Co., Ltd. has an industry-leading research and development team.
· We are trying to maximize our sustainability. During our production, we make efforts to reduce pollution and improve energy efficiency.
Application of the Product
Bosu's roll up garage door manufacturers can be used in a variety of industries.
We are willing to understand the real needs of our customers. Then, we will provide the best solutions to their needs.
