Sectional Doors by Bosu Door
Product details of the sectional doors
Product Overview
The design of Bosu Door sectional doors is never out of date. As it is manufactured in strict accordance with the international quality standard, the product is of assured quality. It brings considerable profitability and brand influence to Bosu Door.
Product Description
Our sectional doors is more competitive than similar products, as shown in the following aspects.
product information

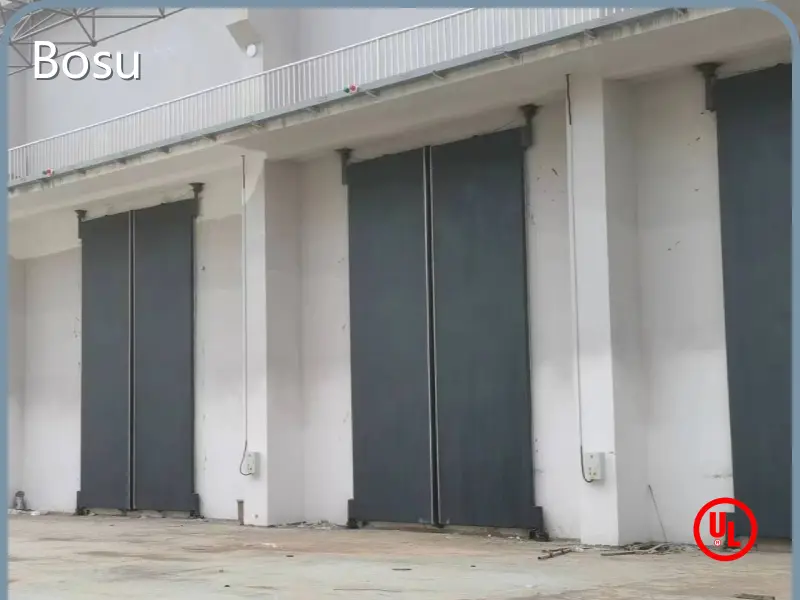

The discharge door adopts pneumatic, hydraulic, and electric driving methods, and can be controlled in both the garbage discharge hall and the grab control room. The discharge door is a double door flat open/2 fold flat push/cover type. Each discharge door is equipped with an independent control device to reduce faults and mitigate impacts. The control system has two operating modes: local and overall control. Normal unloading configuration: 1. Local switch box (with a panel equipped with a change-over switch and emergency stop button for local/master control selection). 2. Main control cabinet (located in the unloading door control room, equipped with power distribution facilities, transformers, and independent control devices for each door). The main control console of the discharge door is set in the garbage grab control room, with three operating modes: local, automatic, and remote, which can be freely selected. In order to make the garbage truck driver aware of the specific unloading location, one IP56 red and one green traffic signal light is installed above each unloading door.
product description
Set up an operation console (main control) in the garbage grab control room, with N door switch buttons and N door two-position transfer switches arranged on the console. The two operating positions are: console operation and local operation. There are two corresponding control methods, namely main control panel control and local control. Main control panel control: The control room operator will open the corresponding discharge door in the garbage grab control room based on the position of the garbage grab and the height of the material level near each discharge door. Each door body displays the discharge status signal, and the garbage truck driver will operate the discharge based on this signal. Local control: The discharge door switch will be switched to the local control, and the on-site operator will control the discharge door switch through the local switch button next to the door body, Each door body displays a status signal, and the garbage truck driver operates the unloading based on this signal. Each discharge door system has overload protection, collision protection, and other fault protection functions.
The opening and closing process can be adjusted according to the performance curve, and can be self-locking in case of power failure due to certain reasons.
Security system
product details
Company Advantages
Bosu Door has gained its popularity all over the world. Our company has excellent employees. They are knowledgeable in the sectional doors industry and skilled in their respective areas of expertise. Always adhering to a high degree of social responsibility and corporate philosophy is our tenet.
Customers who need our products are welcomed to contact us for consultation.
