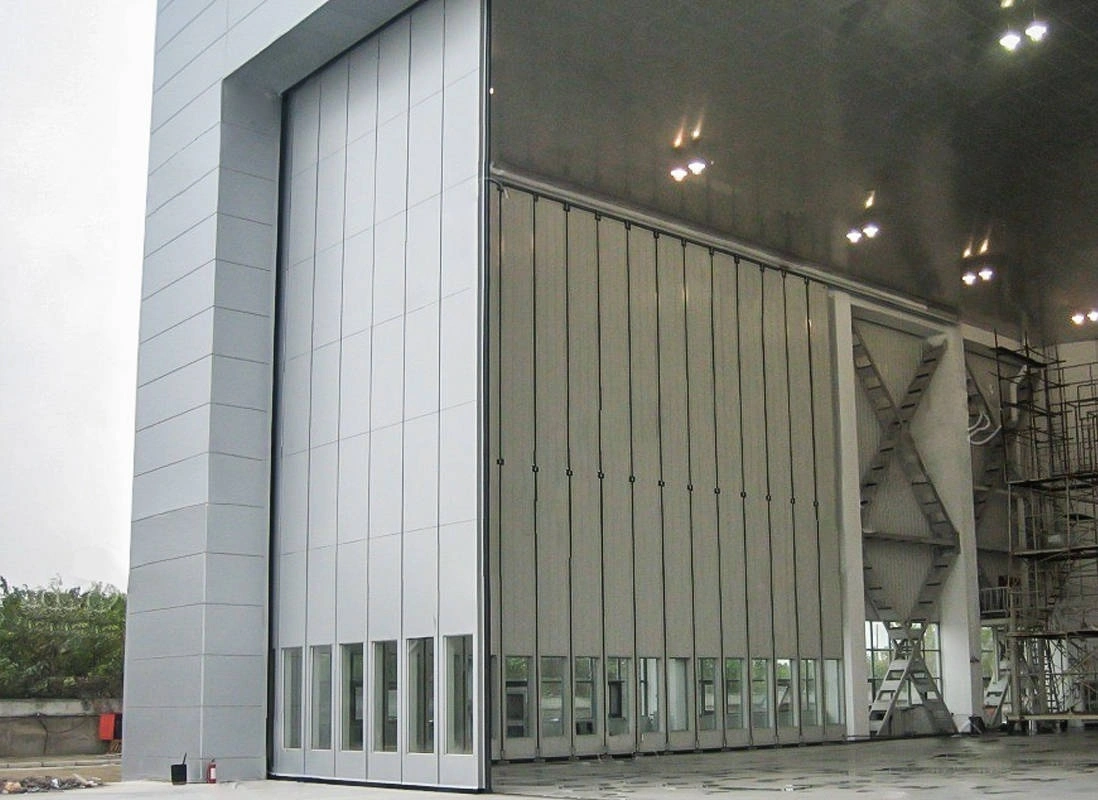

Sliding Hangar Door System with Upper and Lower Rails and Transmission

The sliding hangar door system is mainly composed of door leaf, upper guide rail, lower rail, transmission device, upper guide wheel, driving wheel, driven wheel, door resistance, control system, power supply system, safety system, sealing system, drainage, ice melting device, etc.

Inquiry

Write a Review

product information

Maximize space and convenience with our sliding hangar door. Easy to operate and durable, it provides efficient access for aircraft and large equipment. Our sliding hangar doors are designed to maximize usable space by sliding horizontally, allowing for more room for maneuvering and storage within the hangar. The smooth and easy operation of the doors reduces the time and effort required for accessing and stowing aircraft and equipment, increasing productivity and efficiency. The durable construction ensures long-lasting performance, even in demanding industrial environments. With a variety of sizes and customization options available, our sliding hangar doors can be tailored to fit the specific needs of your facility. Upgrade your hangar with our sliding doors and experience improved accessibility and functionality.

product description

The operation monitoring of the hangar door automatic control system adopts a centralized control cabinet, and all the states of the door body are displayed on the touch screen in the form of strip flashing.

The hangar door automatic control system adopts a modular design, which is easy to interchange and expand, and guarantees the flexibility of the system to the maximum extent.

The hangar door safety control system is equipped with all-round and multi-angle safety protection, which mainly includes the following safety concepts.

1. Long-distance safety photoelectric system

2. Short-distance safety monitoring system

3. All-round high-sensitivity safety edge unit

4. Inching operation safety mode

5. Operation light and alarm light

6. Small door interlock protection function

Sizes may be available on request

Higher wind loads on request

Operating environment with high humidity and low temperature on request

Control system

Hangar door touch screen monitoring unit

hangar door automatic control unit

hangar door power supply and signal transmission unit

hangar door drive and limit unit

hangar door control system schematic diagram and control program

Safety protection system

product details

图片65 (2)






Product parameters

Items	Unit	Description of Configuration
Special motor for High speed door	SET	Power 1.5-2.2kw BAOJIU A4
Control system	SET	Two-phase 220V power 0.75-1.5KW, control box with main power control switch, emergency stop button, manual automatic transfer button, manual control up and down button.
Aluminum alloy door panel	SET	Aluminum alloy door panel wall thickness of 0.8mm, thickness of 40mm/60mm/80mm/100mm, door curtain for separate assembly structure: bridge insulation aluminum alloy door plate, multi-level sealing rubber strip, muffler bearing chain, polyurethane guide wheel and other parts; When the door body runs, it slides in the aluminum alloy track through the guide wheel made of polyurethane vinegar.
Guide rail	SET	German laser wire cutting technology is adopted to improve the machining accuracy of fast door accessories. CNC bending molding, plate selection of high-quality galvanized materials, the thickness of Column is 2.5mm,the thickness of aluminum alloy track is 5.0mm
stopper	SET	Servo built-in absolute value encoder control, accurate positioning.
Perspective window	SET	The design of high quality polycarbonate board and double layer structure not only ensures the insulation effect inside and outside the door body, but also maintains good transparent lighting effect. The inside and outside are clear and visible, and the appearance highlights the grade. The thickness is 2.0mm
Safety protection device	SET	When there is an obstacle below the express door, the door body should remain open; When the door body descends and objects pass through, the door will open to the open position, and then delay the descent when there is no obstacle below.
Equilibrium system	Strip	Both sides of the door post internal balance spring, and the door plate weight maintain a certain balance, while reducing the load of the motor running, running smoothly and freely.
Door body traction	Strip	High quality wear-resistant and high strength roller chain structure is adopted. The door body is driven into the turbine mechanism which can change speed rapidly through the synchronous chain.
Opening mode	SET	Radar induction device: In the induction area, the door will open automatically when the vehicle arrives.
Opening mode	SET	The ground settle opening device: in the induction area, the car to the door automatically open.
Opening speed	m/s	Opening and closing speed of 0.6m-1.5m per second, high frequency closing (800~2000 times a day) button, indicator using high quality brand.
Column section		305mm*250mm(Adjust according to door thickness of the panel)
